Public Test Systems
Four medium-scale test systems have been developed to support i2x sprint studies and bootcamps.
Bulk Electric System (BES) Test Systems
The source data for these BES test systems is maintained at CIMHub/BES. Versions are available in MATPOWER, the Common Information Model (CIM), and the Alternative Transients Program (ATP). All these formats are free to use.
Attribute Counts |
WECC 240 |
IEEE 118 |
|---|---|---|
Buses [1] |
243 |
193 |
Machines [2] |
49 |
56 |
Solar |
25 |
14 |
Wind |
10 |
5 |
Aggregate DER |
2 |
0 |
Series Capacitors |
9 |
0 |

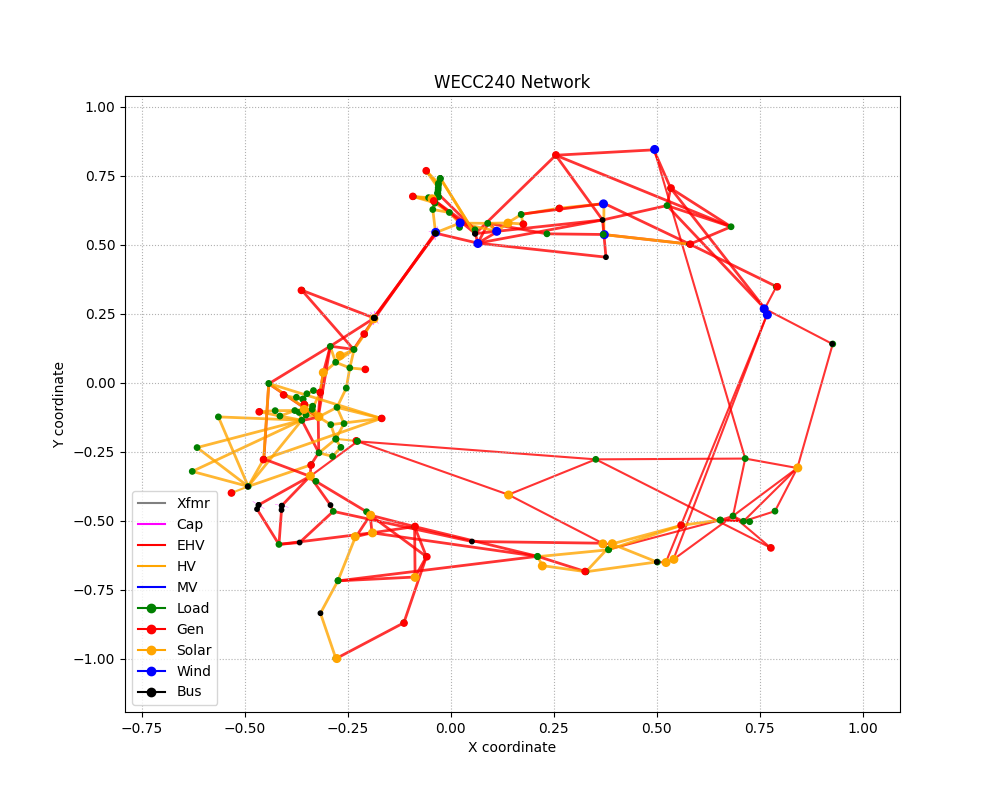

WECC 240-bus Test System for MATPOWER or ATP
IEEE 118-bus Test System Enhanced with IBR for MATPOWER or ATP
Distributed Energy Resource (DER) Test Systems
The source data for these DER test systems is maintained at the pnnl/i2x github repository. Versions are available in OpenDSS, CIM, ATP, and GridLAB-D. All these formats are free to use.

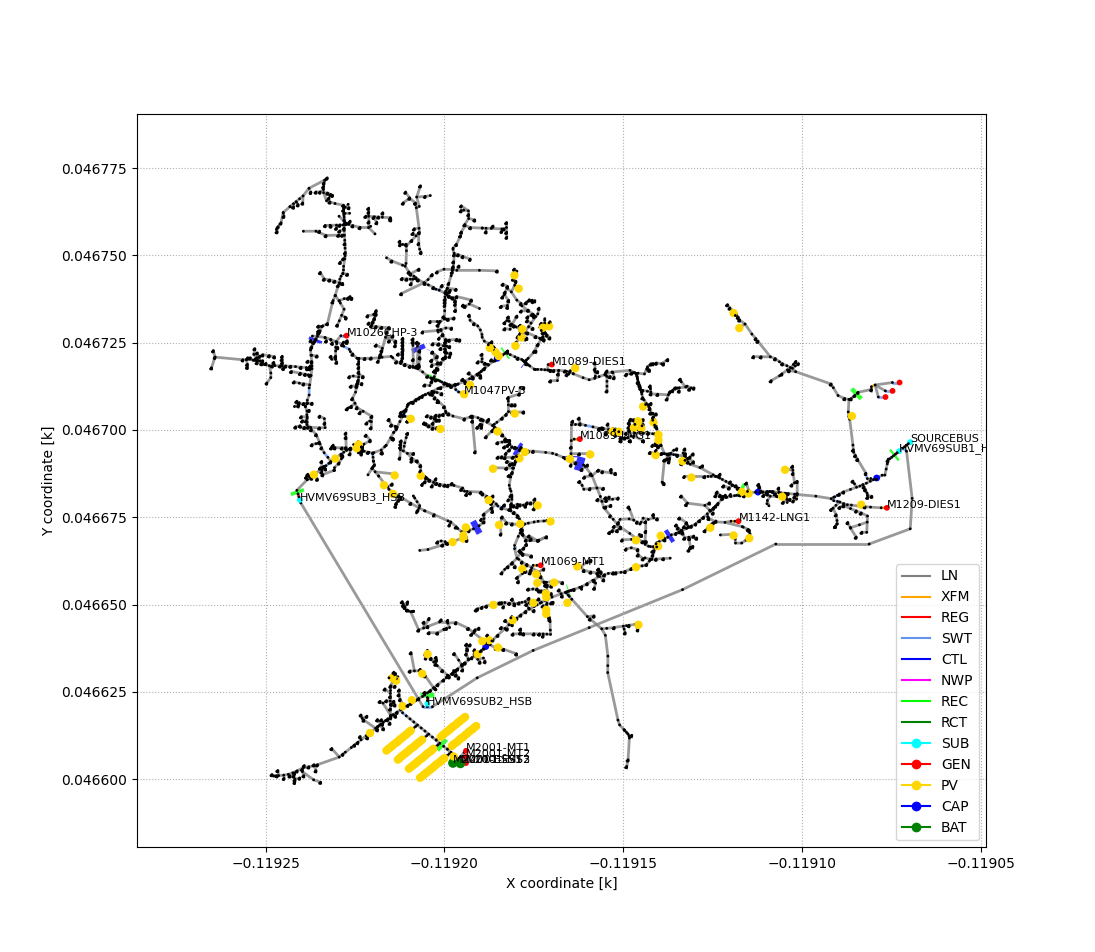

Proposed IEEE 9500-node model with 3 radial feeders, for OpenDSS in i2x-der

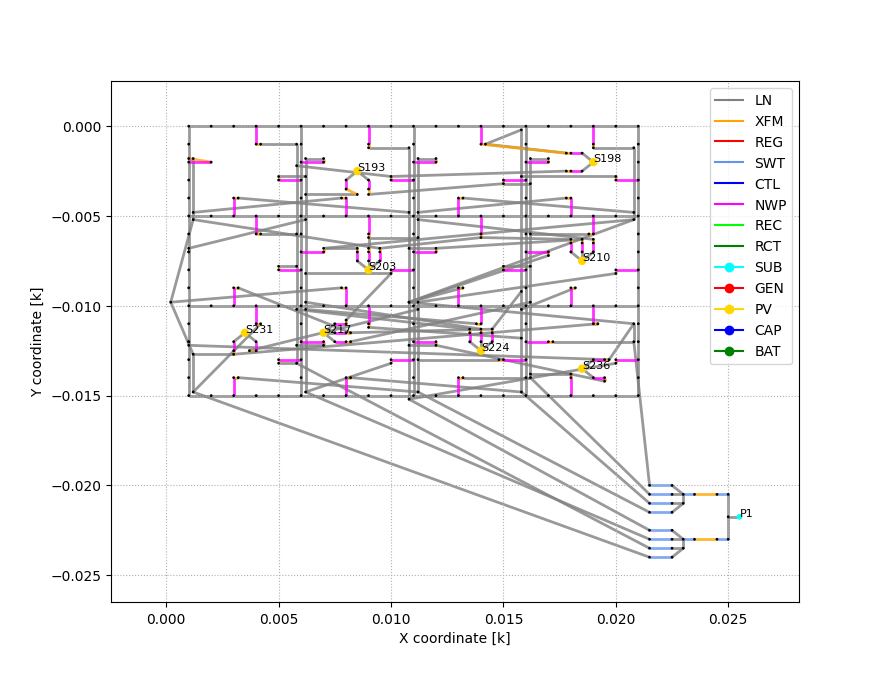

IEEE North American Low-Voltage Network in i2x-der, for OpenDSS
Footnotes
